Multi-Function Packaging Machines Vertical Automatic Packaging Machine
| Type | Multi-Function Packaging Machine |
| Production Capacity | 60bags/min |
| Weight (KG) | 550 |
| Automatic Grade | Automatic |
| Driven Type | Pneumatic |
| Voltage | 220V 50Hz/60Hz |
| Dimension(L*W*H) | 970*680*1960 mm |
| Core Components | Motor, PLC, Engine |
| Bag type | Back Sealing |
| Usage | Food Snack |
| Main Function | Weighing Forming Filling Sealing |
| Packing speed | 5-60 Bags/min |
| Packing speed | 5-60 bags/min |
| Display | 10.4 inch touch screen |
| Weigher type | 10/14 heads |
| Weighing hopper volume | 1.3L/ 2.5L |
| Weighing accuracy | ± 0.5-1.5 g |
| Single wieghing range | 10-800 g/20-1500 g |
| Pillow bag size | bag width 50-200 mmbag length 50-250 mm |
| Stand bag size | bag length 50-250 mmbag front width 50-120 mmbag side width 40-80 mm |
| The max. roll film width | 420 mm |
| Type of sealing | pillow bag, standing bag |
| Measuring range | 30-1200 ml |
| Gas/ air consumption | 0.3 cubic meter/min, 0.65 mpa |
| Film pulling driven system | servo motor |
| Horizontal sealing driven system | cylinder/servo motor |
| Power supply specification | 220V 50 Hz/60 Hz 3.7 KW |
| Overall size | 990(L)* 1430(W)* 2200(H) mm |
| Weight | 800 kg |
| Whole machine cover material | 304 stainless steel |

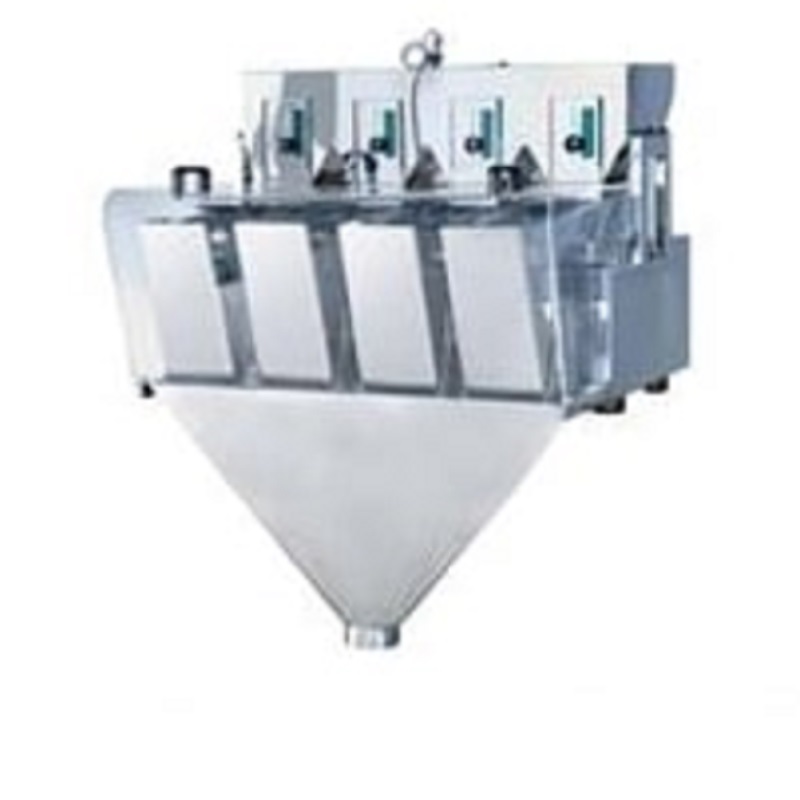

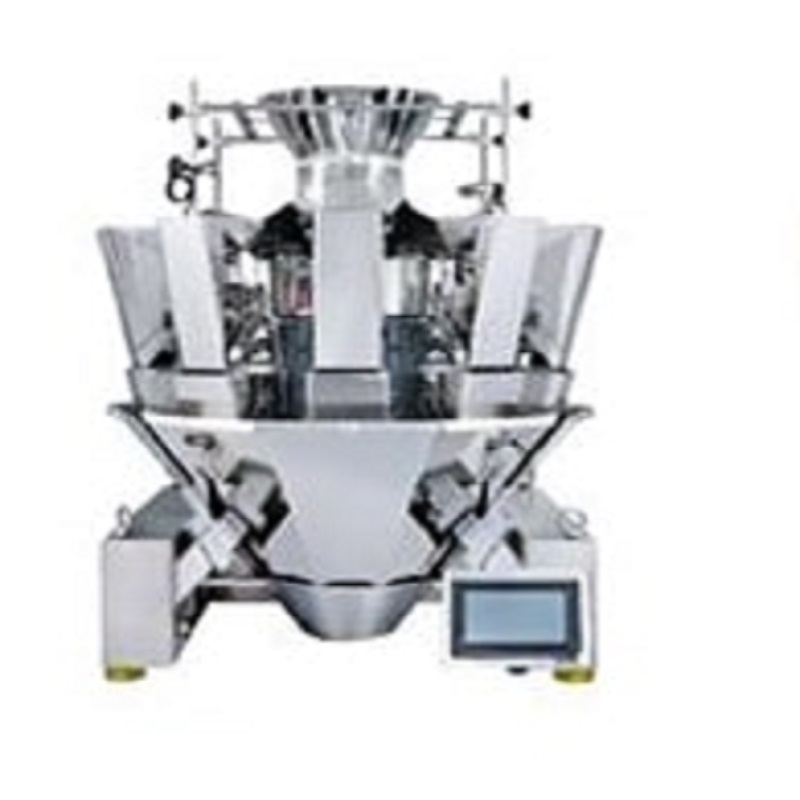

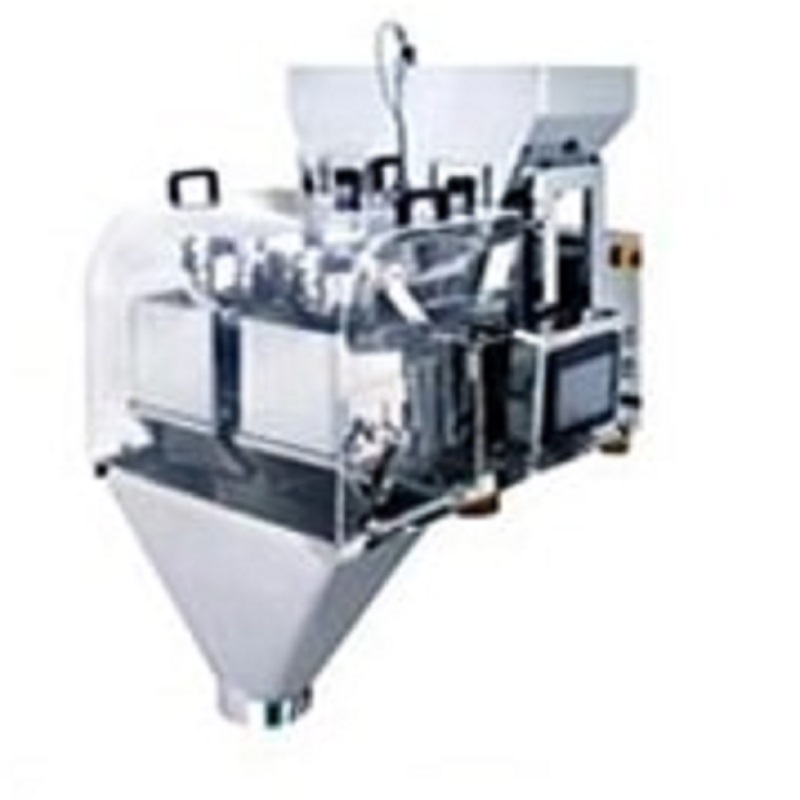

Multi Head Weigher
Different kinds of weigher are avail-able for choice to meet a vanety of products weigh- ing in a wide range with high accuracy within +/-1%

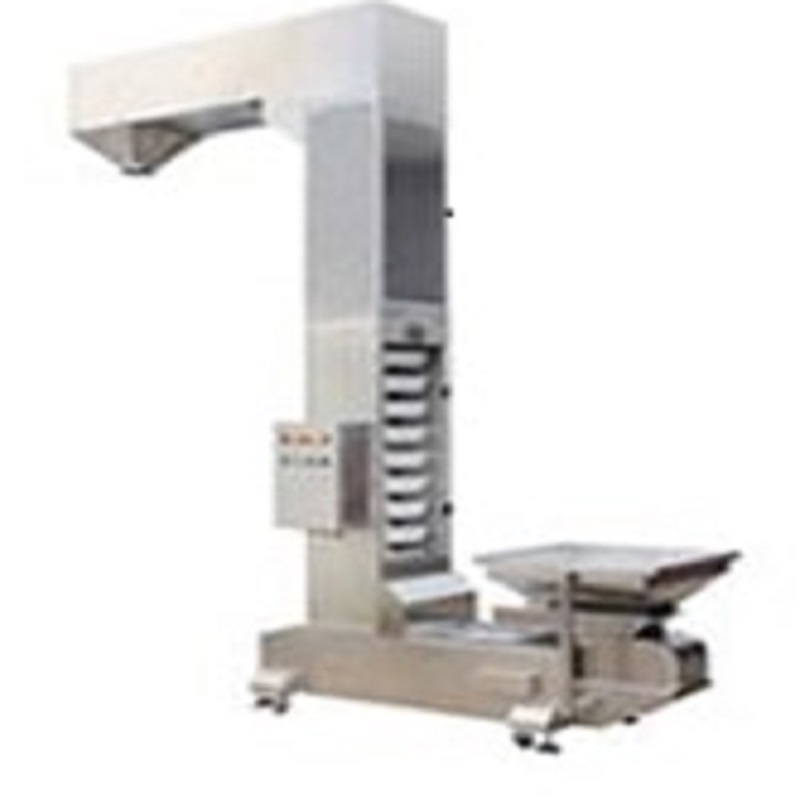

Z shape elevator
Z-type bucket elevator has the advantages of flexible composition small damage to the material itself and reduction of scrap rate.The shell of the whole machine is sealed to reduce dust flying.

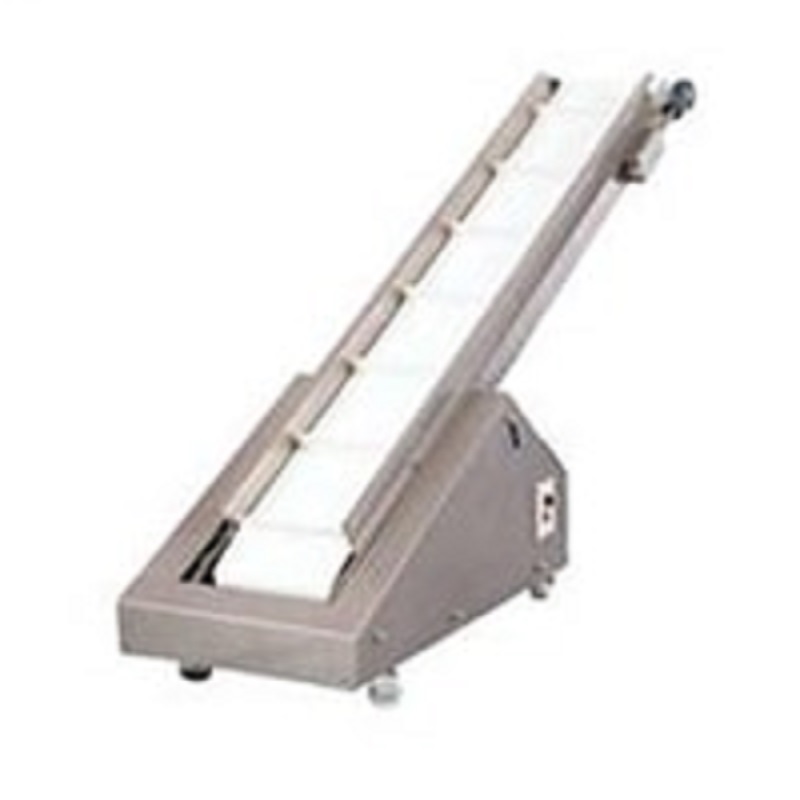

Conveyor
It has the advantages of stable transportation, simple structure, easy maintenance and low cost.

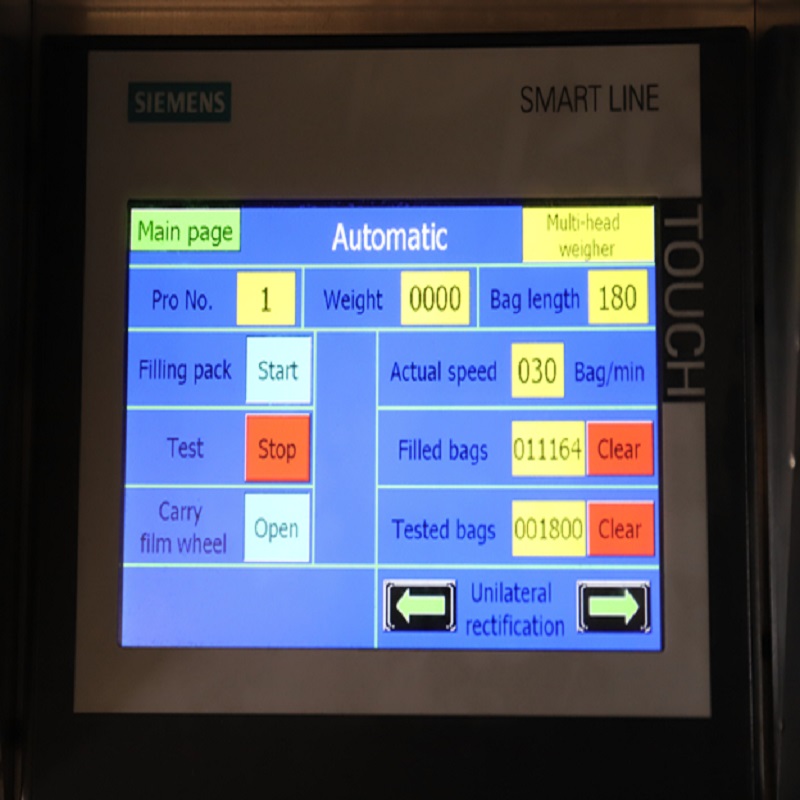

CHINESE AND ENGLISH BILINGUAL TOUCH SCREENCONTROL
The man-machine interface controls the parameters of the whole machine and adjusts the operation of the parts through the intelligent system.
